SR-IOV (Single Root I/O Virtualization) is an extension to the PCI Express (PCIe) specification. Virtual Functions (VF) are created that act like a separate physical NIC for each VM; the VF in the NIC is then given a descriptor that tells it where the user space memory, owned by the specific VM it serves, resides. This allows data to/from the NIC to be transferred to/from the VM directly via DMA (Direct Memory Access), bypassing the virtual switch, providing interrupt-free operation, and resulting in high-speed packet processing. However, there is a downside. Due the direct access between the VM and the VF, anything between, i.e. the virtual switch, is bypassed.

In addition to Virtual Functions, SR-IOV also provides the Physical Function (PF). Physical functions are fully featured PCIe functions that can be discovered, managed, and manipulated like any other PCIe device.[1] Furthermore, PF's contain the SR-IOV capability structure and manage the SR-IOV functionality, such as the setup and configuration on Virtual Functions.

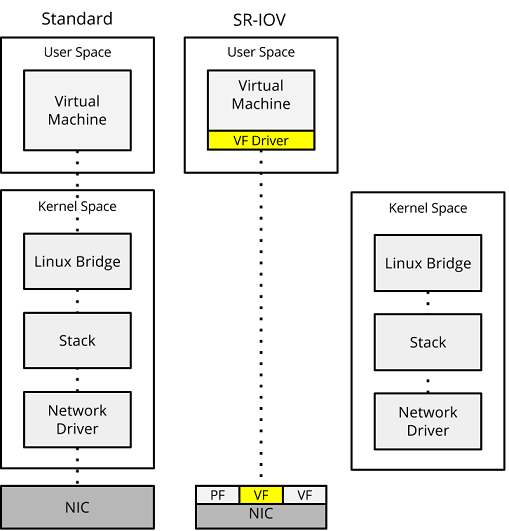

Figure 1 - Standard data path vs SR-IOV.


  1. "Using PCIe SR-IOV Virtual Functions - Oracle VM Server for SPARC ...." Accessed 21 Aug. 2017. ↩︎
